HD-B6

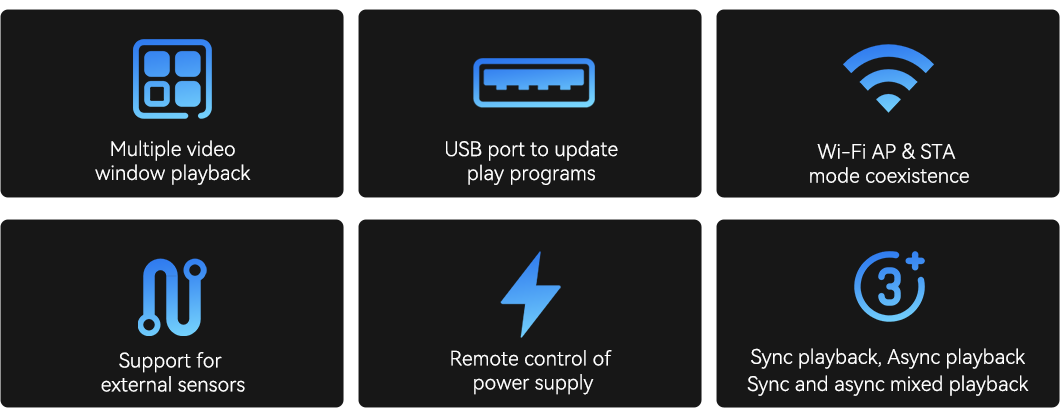

HD-B6 is a four in one player integrating synchronous playback, asynchronous playback and video zooming of U-disk playback box. A card supports 1.3 million pixel points, 8GB on-board storage space, Wi-Fi module as standard, support HDMI splicing display.
Parameters
Module Type

Compatible with   indoor and outdoor full color and single color module

Support   conventional chip and mainstream PWM chip

Scan Mode Static to 1/64 scan mode
Control Range

One B6 control range: 1.3 million pixel, widest 3840,   highest 2048;

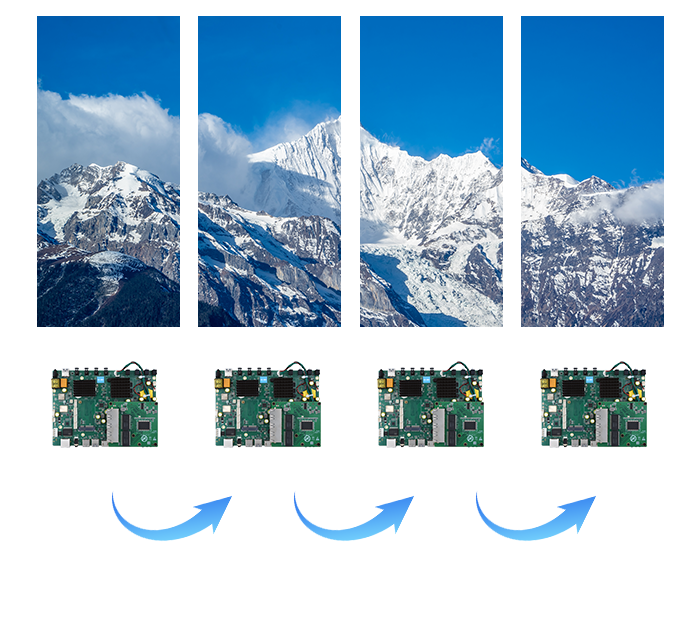

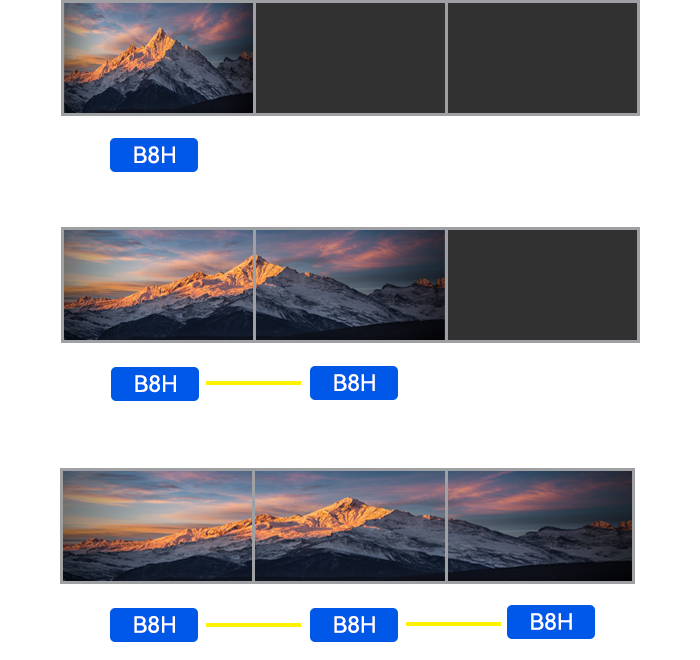

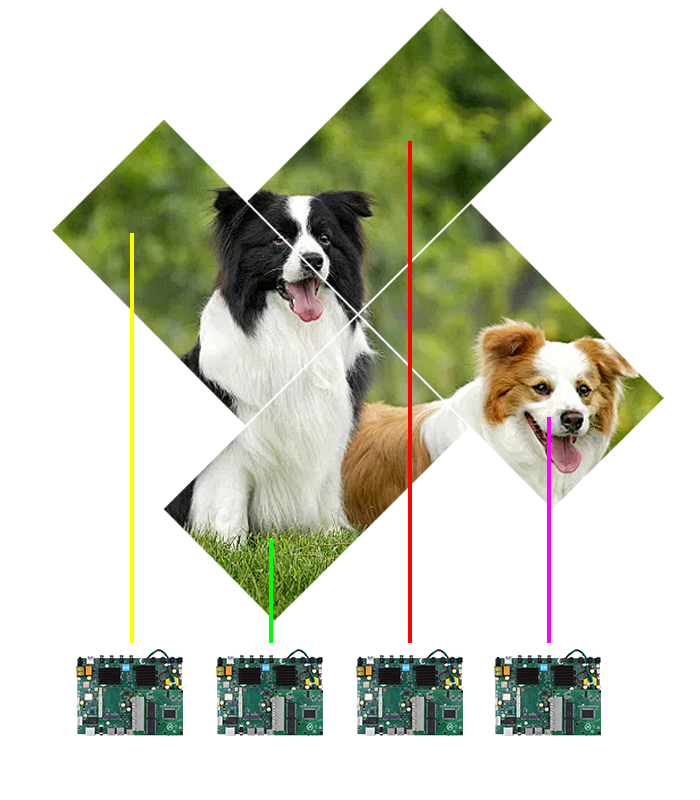

HDMI multiple B6   splicing control range: 2.3   million pixel, widest 3840, highest 4096.

Gray Scale 256-65536 (adjustable)
Basic Functions

Video, Pictures,   Gif, Text, Office, Clocks, Timing, etc.

Remote,   Temperature, Humidity, Brightness, PM Value, etc.

Support   Synchronized picture auto-zooming, Playing live screen without video   processor.

Video Format

HD video hard decoding, 60Hz frame rate output.

AVI, WMV, RMVB, MP4, 3GP, ASF, MPG, FLV,   F4V, MKV, MOV, DAT, VOB, TRP, TS, WEBM, etc.

Image Format Support BMP, GIF, JPG, JPEG, PNG, PBM, PGM, PPM, XPM, XBM, etc.
Text Text editing, Image, Word, Txt, Rtf, Html, etc.
Document

DOC, DOCX, XLSX, XLS, PPT, PPTX, etc.

Office2007   Document format

Time Classic Analog Clock, digital clock and various of   clock with image background
Audio output Double track stereo audio output
Memory 8GB   Flash Memory, Expanding memory by U-disk
Communication 100M/1000M RJ45 Ethernet,   Wi-Fi, 3G/4G, LAN, USB
Working Temp -40℃-80℃
Port

IN:12V Power Adapter*1, 1Gbps   RJ45*1, USB 2.0*1, Test Button*1, GPS, 4G(Optional), Sensor port*1, HDMI*1

OUT:1Gbps RJ45*1,AUDIO*1,HDMI*1

Power 18W
