RK3566:HD-3566S
“LedArt" APP wireless management Operate easily
No need to install server, support point-to-point cell phone wireless messaging
Powered by Android 11
Equipped with Android 11, the system runs faster and has better security and compatibility
Quad-core processor
RK3566 chip adopts quad-core ARM Cortex-A55 architecture, the main frequency can be as high as 1.8GHz, there is a qualitative leap in performance, able to play a variety of formats of high-definition video screen, and can handle complex interactive operations.
Remote control saves time and effort
Free affiliation with the "Xiaohui Cloud" platform and support for Internet cluster management
Multiple communication methods
Support Wi-Fi, USB flash drive, TF card, LAN, 4G to update content

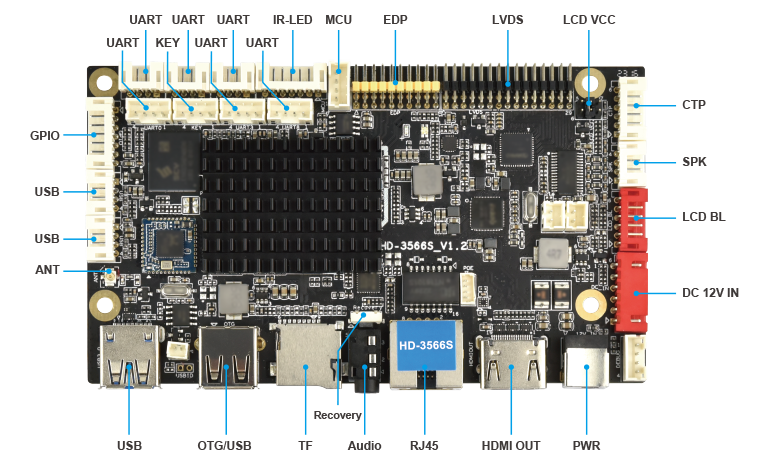

Interface Demonstration

Model
HD-3566S
CPU
RK3566 quad-core 1.8GHz
System version
Android 11.0

Image display
4K@30Hz
Display
interface

LVDS、HDMI、eDP

Wi-Fi

2.4GHz
(Optional 2.4G+5GHz)

Bluetooth

BT4.2
Ethernet

100Mbps
Optional 4G/5G

4G (Circumscribed)
USB

TF interface

HDMI input

-
Extension
interface

USB 3.0,3×USB 2.0,
7×UART,GPIO,KEY,RTC,IR

Multi-screen
soft splicing

Messaging
software
Mobile APP⸺“LedArt”APP; Cloud Platform⸺XiaoHui Cloud; PC Software⸺LCD Player



Document
software
Firmware
