RK3576：HD-3576V
  • Features
  • Specification
  • Download
Octa-core high-performance processor
Featuring the Rockchip RK3576 octa-core processor (4×Cortex-A72 + 4×Cortex-A53, 64-bit) with 2.2GHz peak speed, Android 14.0, and industry-leading efficiency for powerful yet energy-saving performance
6TOPS NPU, empowering AI applications
6TOPS high-performance NPU?? supports mixed-precision computing (INT4/INT8/INT16/FP16/BF16/TF32) and effortlessly converts neural network models based on TensorFlow, MXNet, PyTorch, Caffe, and other frameworks, thanks to its exceptional compatibility. It meets the demands of diverse AI application scenarios
4K@120fps high-frame-rate video decoding
Equipped with the Mali-G52 MC3 GPU, supporting multiple display interfaces (LVDS/V-by-One/HDMI OUT/MIPI) with a maximum frame rate of 4K@120fps. It enables dual-screen independent display and supports H.264/H.265 high-definition video encoding/decoding
HDMI IN
Supports HDMI IN with up to 4K@60Hz resolution input

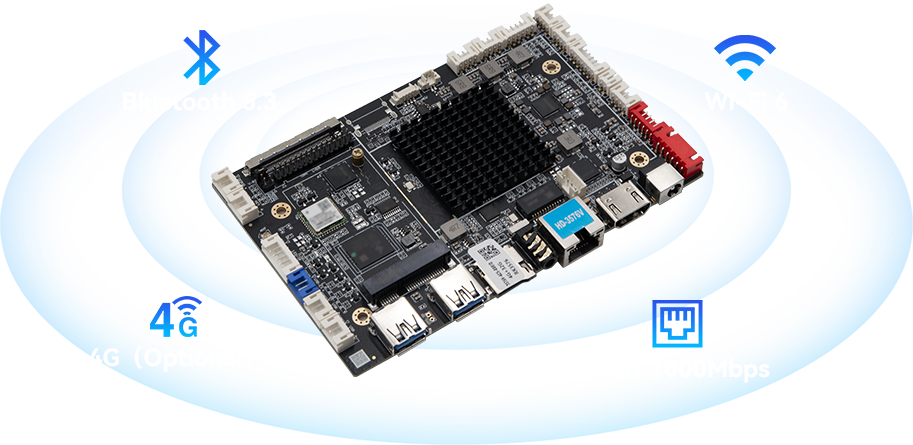

Multiple network communication methods
Supports Gigabit adaptive Ethernet, Wi-Fi 6 (dual-band 2.4GHz+5GHz), Bluetooth 5.3, with optional USB 4G module
Rich/Comprehensive expansion interfaces
Equipped with 5 USB ports (3 built-in 4-pin*2.0mm USB, 2 standard USB 3.0), 4 TTL serial ports (RS485/RS232), 1 MCU programming port, 5 GPIO interfaces, 1 PoE port, and 1 DEBUG port, meeting diverse peripheral connectivity requirements in the market
Model HD-3576V
CPU octa-core 2.2GHz
NPU
6TOPS
System version Android 14
Image display
4K@120Hz（Optional HDMI OUT）
Display interface
V-By-One, LVDS,HDMI OUT, MIPI
Wi-Fi Wi-Fi 6（2.4GHz+5GHz）
Bluetooth BT 5.3
LAN
 1000Mbps
Optional 4G √
TF interface √
HDMI IN 1×HDMI IN
Extended Interface
3×4pin*2.0mm USB 3.0
2×USB 3.0
4×TTL
MCU、5×GPIO、PoE、DEBUG
Messaging
software
Mobile APP⸺“LedArt”APP; Cloud Platform⸺XiaoHui Cloud; PC Software⸺LCD Player

Document
software
Firmware
