RK3576：HD-3576V-BOX
  • Features
  • Specification
  • Download
Octa-core high-performance processor
Featuring the Rockchip RK3576 octa-core processor (4×Cortex-A72 + 4×Cortex-A53, 64-bit) with 2.2GHz peak speed, Android 14.0, and industry-leading efficiency for powerful yet energy-saving performance
6TOPS NPU, empowering AI applications
6TOPS high-performance NPU?? supports mixed-precision computing (INT4/INT8/INT16/FP16/BF16/TF32) and effortlessly converts neural network models based on TensorFlow, MXNet, PyTorch, Caffe, and other frameworks, thanks to its exceptional compatibility. It meets the demands of diverse AI application scenarios
4K@120fps high-frame-rate video decoding
Equipped with the Mali-G52 MC3 GPU, supporting multiple display interfaces (LVDS/V-by-One/HDMI OUT/MIPI) with a maximum frame rate of 4K@120fps. It enables dual-screen independent display and supports H.264/H.265 high-definition video encoding/decoding
HDMI IN
Supports HDMI IN with up to 4K@60Hz resolution input
Multiple network communication methods
Supports Gigabit adaptive Ethernet, Wi-Fi 6 (dual-band 2.4GHz+5GHz), Bluetooth 5.3, with optional 4G module

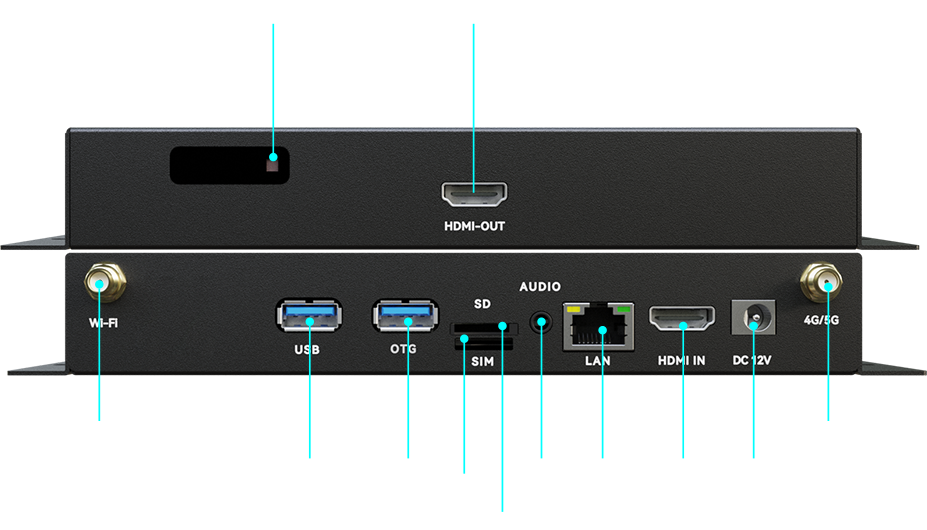

interface
The 3576V integrates abundant expansion interfaces for effortless scalability across diverse application scenarios
Model
 HD-3576V-BOX
CPU
Octa-core 2.2GHz
NPU 6 TOPS
System version
 Android 14
Image display
4K@120Hz
Display
interface
 HDMI
HDMI input
 1×HDMI IN
Wi-Fi Wi-Fi 6（2.4GHz+5GHz）
Bluetooth
 BT5.3
LAN
 1000Mbps
Optional 4G/5G
  4G
TF interface
 √
Messagina
software
Mobile APP——“LedArt”APP; Cloud Platform——XiaoHui Cloud; PC Software——LCD Player

Document
software
Firmware
