| Model | HD-H20 | HD-H16 |
| Loading capacity | 13 million pixels | 10.4 million pixels |
| Max. width | 65,536pixels | 65,536pixels |
|
OS
|
Android 14 | Android 14 |
|
Video Decoding
|

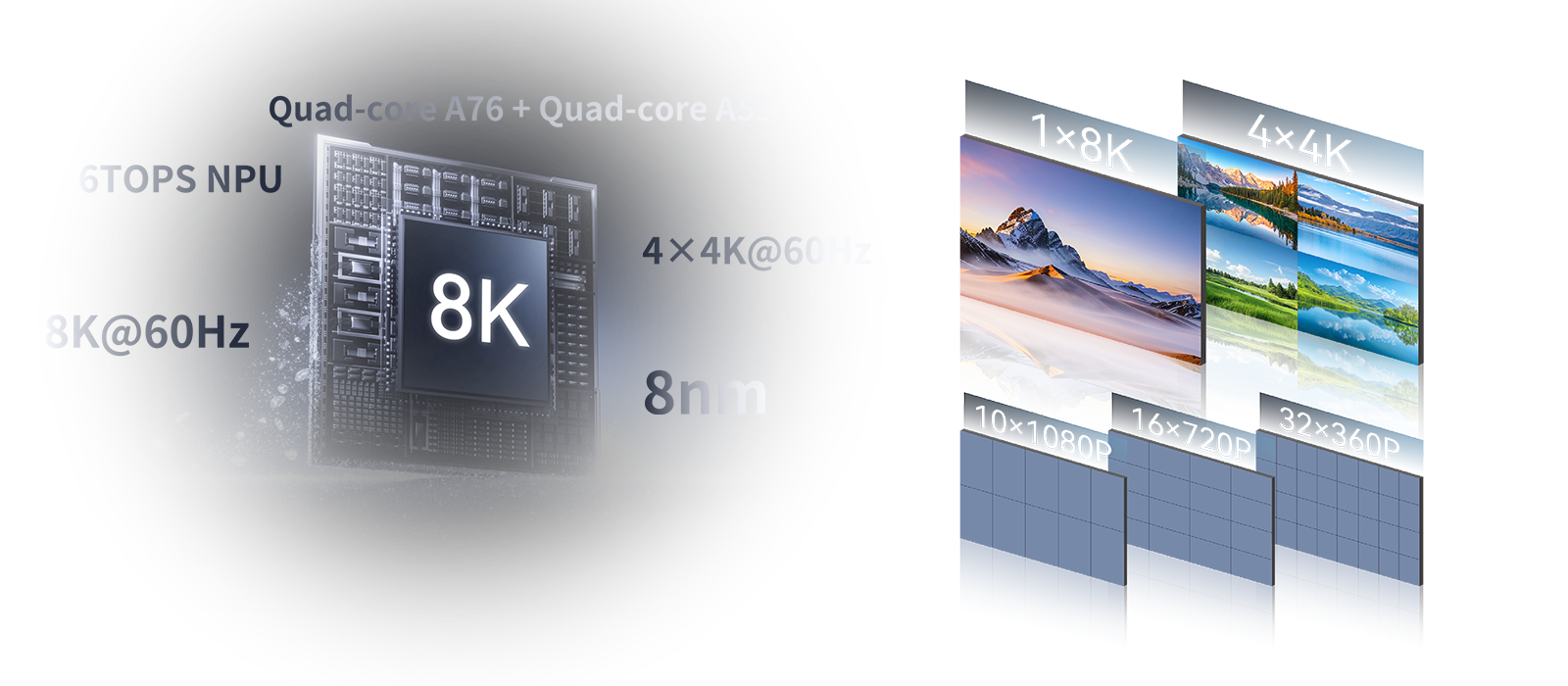

1×8K/4×4K/10×1080P/16×720P/32×360P
|
1×8K/4×4K/10×1080P/16×720P/32×360P
|
|
Input Interface
|
1×HDMI 2.0
1×HDMI 2.0(IN+LOOP)
2×HDMI 1.3

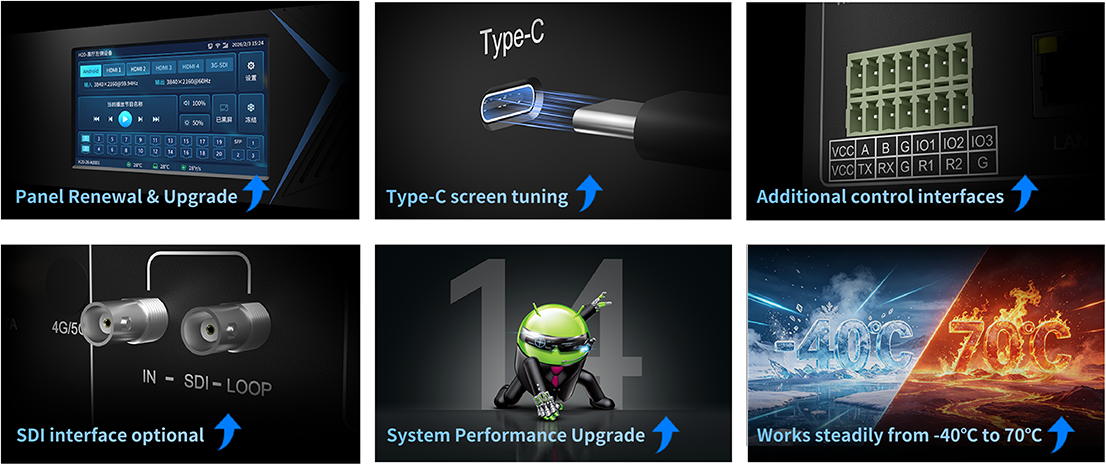

1×3G SDI (IN+LOOP, Optional)
1×USB3.0、2×USB2.0
1×Type-C
|
1×HDMI 2.0
1×HDMI 2.0(IN+LOOP)
2×HDMI 1.3
1×3G SDI (IN+LOOP, Optional)
1×USB3.0、2×USB2.0
1×Type-C
|
|
Output Ports
|
20×Gigabit Ethernet Ports
3×10G SFP（Optional）
1×SPDIF

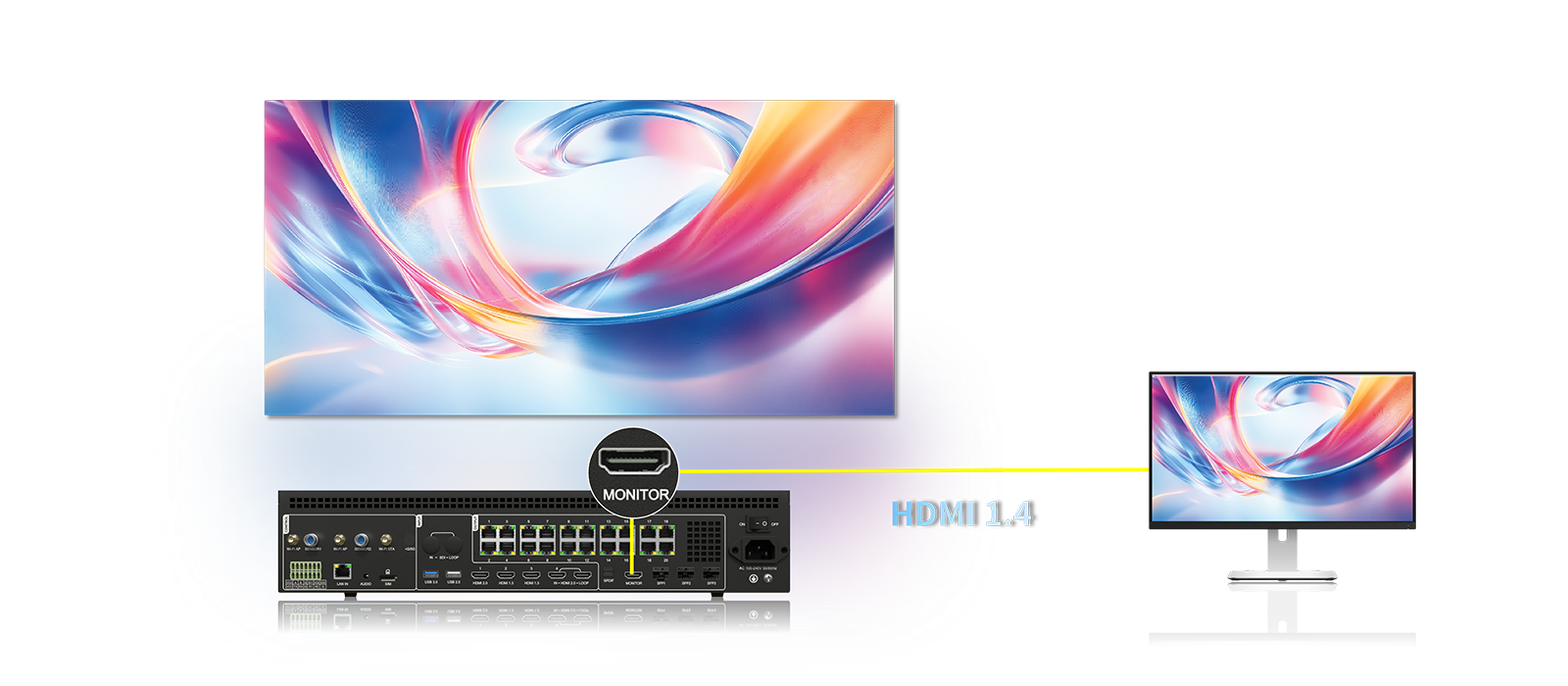

1×MONITOR(Preview Port)
|
16×Gigabit Ethernet Ports
2×10G SFP（Optional）
1×SPDIF
1×MONITOR(Preview Port)
|
| LAN | 1000Mbps | 1000Mbps |
| Audio | √ | √ |
| SIM | √ | √ |
| 4G/5G module | Optional 4G/5G | Optional 4G/5G |
| External sensor | 2 channel | 2 channel |
| Central Control | RS232、RS485 | RS232、RS485 |
