RK3588：HD-3588H
  • Features
  • Specification
  • Download
High-performance Octa-core Processor
It Adopts RK3588 octa-core processor with 8nm process technology, and Integrates a big.LITTLE CPU architecture with four Cortex-A76 cores and four Cortex-A55 cores, It supports 2.4GHZ Max Frequency, It integrates ARM Mali-G610 GPU and an NPU with computing power up to 6 TOPS, supporting 8K video encoding and decoding
Android 14
Comes with native Android 14 and supports installation of third-party APKs, delivering enhanced stability and compatibility
Supports AI computing power expansion
Supports multiple expansion interfaces including M.2, Mini-PCIe and PCIe 3.0×4. It can flexibly connect AI accelerator cards, enabling the motherboard with continuous expandability and AI upgrade capability

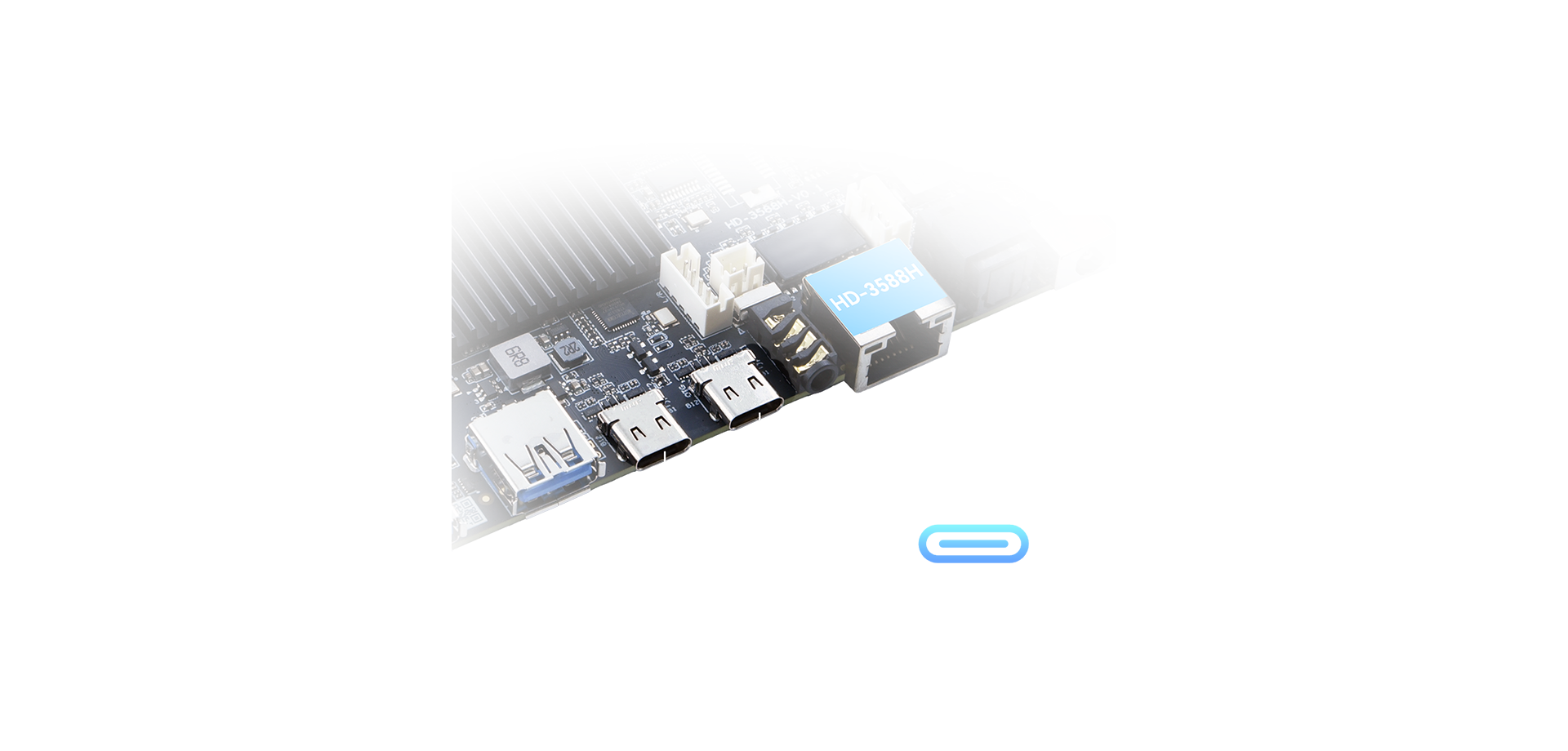

Equipped with Dual Type-C Ports
No complicated adapters required. The board integrates two Type-C interfaces, enabling quick device connection and screen lighting/panel debugging

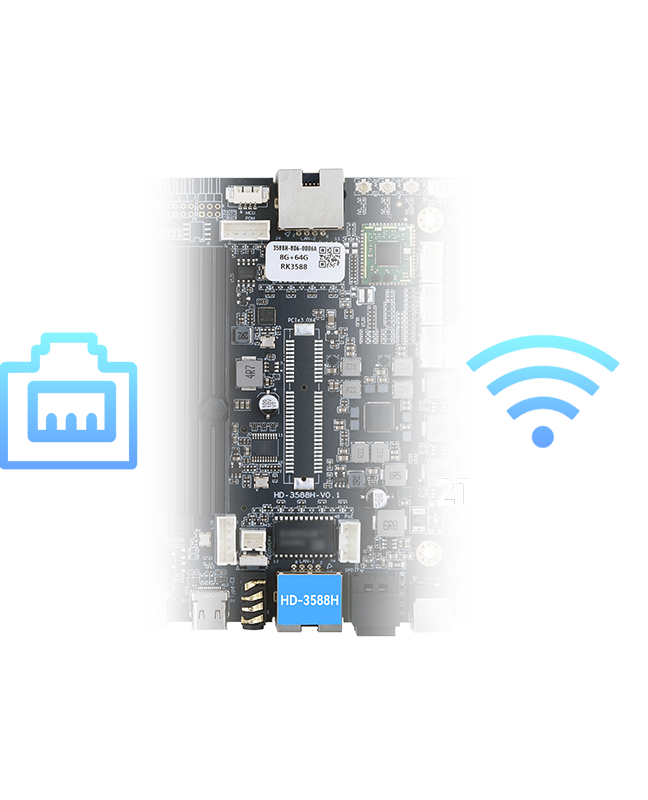

Dual Gigabit Ethernet Ports + Wi-Fi 6
Supports dual gigabit Ethernet ports and 2T2R Wi-Fi 6, covering both wired and wireless connections to meet network requirements of multiple scenarios
Full-link Digital Audio
Supports digital audio interfaces including S/PDIF, PDM MIC and I2S. Compatible with a variety of audio devices to meet audio access requirements for meetings, interaction and multimedia scenarios
Ultra-High Definition Decoding & Display
Supports 8K@60Hz video decoding and display, delivering smooth ultra-high-definition images to meet application requirements for high-end commercial displays, conferences and professional visualization
More Highlights
Model HD-3588H
CPU octa-core 2.4GHz
NPU
6 TOPS
System version Android 14 + HUIDU OS
Image display
8K@60Hz
Display interface
V-by-One, 2×LVDS, 2×Type-C, HDMI, MIPI, eDP (Optional) (Either V-by-One or LVDS2）
Wi-Fi 2T2R Wi-Fi 6（2.4GHz+5GHz）
Bluetooth BT 5.4
LAN
 2×1000Mbps
Optional 4G/5G 4G/5G
TF interface
HDMI interface
Extended Interface
2×USB Type-A 3.0 HOST, USB Type-C 3.0 HOST, USB Type-C 3.0 OTG,
5×USB 2.0, 4×UART, S/PDIF, 4×PCIe 3.0, M.2, Mini-PCIe, I2S, PDN, PDM MIC,
PoE, SPK, L/R, MIC, 4G-SPK/MIC, 3.5mm TRS, SIM, IR/LED, KEY,
CTP, FAN, ADC, MCU, DC_IN, BAT
Messaging
software
Mobile APP⸺“LedArt”APP; Cloud Platform⸺XiaoHui Cloud; PC Software⸺LCD Player

Document
software
Firmware
