RK3568：HD-3568VC
  • Features
  • Specification
  • Download

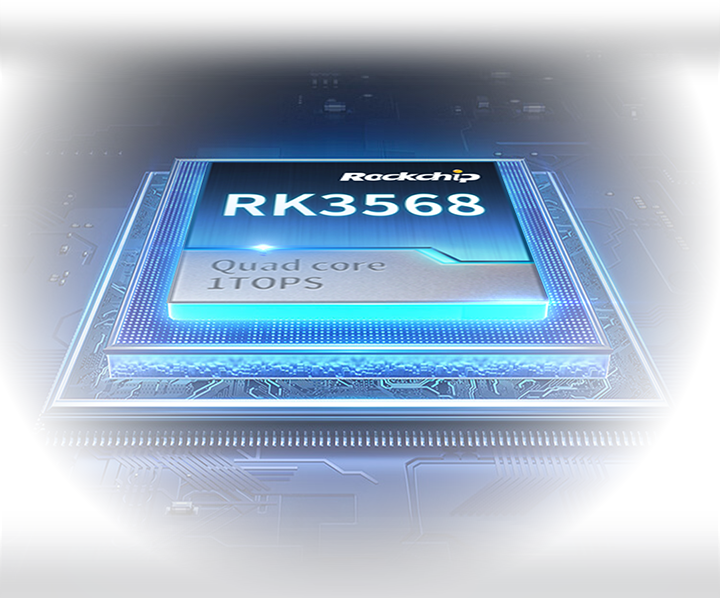

High-performance Quad-Core Processor
Equipped with Rockchip RK3568 quad-core processor. Adopting Cortex-A55 architecture with a main frequency up to 2.0GHz, it integrates Mali-G52 GPU, delivering powerful computing and graphics processing performance for the device
True 4K point-to-point, dual-screen different display
Supports V-By-One/LVDS and eDP display interfaces, with dual-screen different display function. It supports true 4K point-to-point display, restoring every subtle detail perfectly

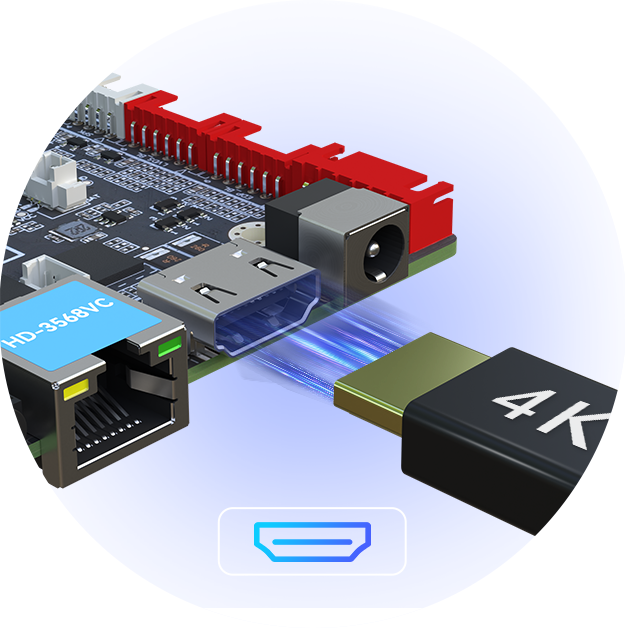

Supports HDMI IN
Onboard 1-channel HDMI IN interface, supports up to 4K video signal input with synchronized integrated audio input, suitable for diverse application scenarios

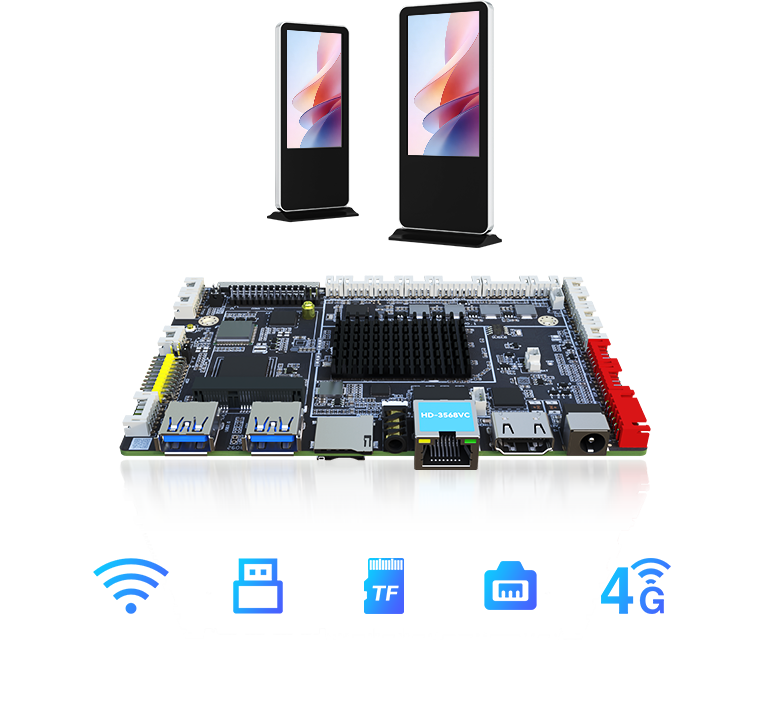

Rich program transmission modes
It supports multiple program transmission modes including Wi-Fi, USB flash drive, TF card, LAN and optional 4G, making program updates flexible and convenient
More Practical Functions
Interface Layout

Model
 HD-3568VC
CPU
Quad-core 2.0GHz
NPU
1 TOPS
System version
Android 11.0
Image display
4K@60Hz
Display interface
V-by-One/ LVDS、eDP
Wi-Fi
Wi-Fi 6
2.4GHz+5GHz
Bluetooth
BT5.4
LAN
1000Mbps
Optional 4G/5G
√
TF interface
 √
HDMI input
1×HDMI IN
Extension interface
1×USB 3.0 HOST，1×USB 3.0 OTG，4×USB 2.0，
4×UART，1×DEBUG，1×MCU，5×IO
Messaging software
Mobile APP⸺“LedArt”APP; Cloud Platform⸺XiaoHui Cloud; PC Software⸺LCD Player
