| Model | HD-VP12 | HD-VP10 |
| Loading capacity | 7.8 million pixels | 6.5 million pixels |
| Max. width |
16,000 pixels
|
16,000 pixels
|

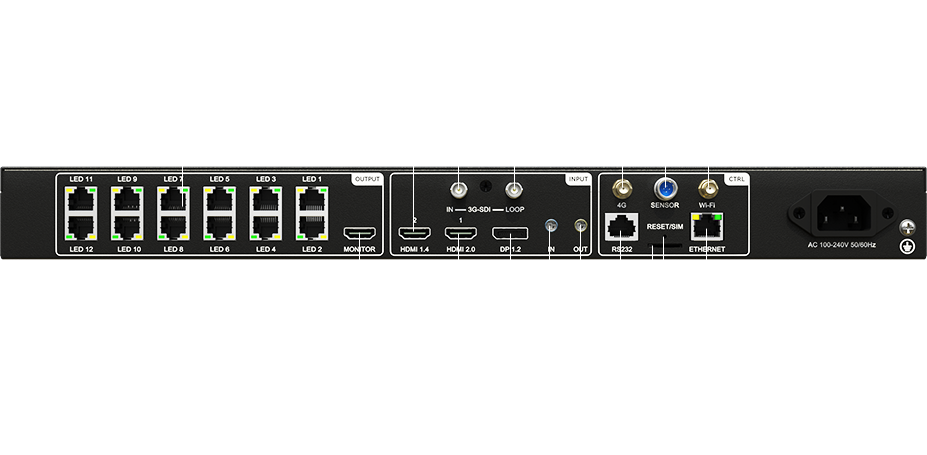

| Input Interface |
1×DP 1.2
1×HDMI 2.0
1×HDMI 1.4

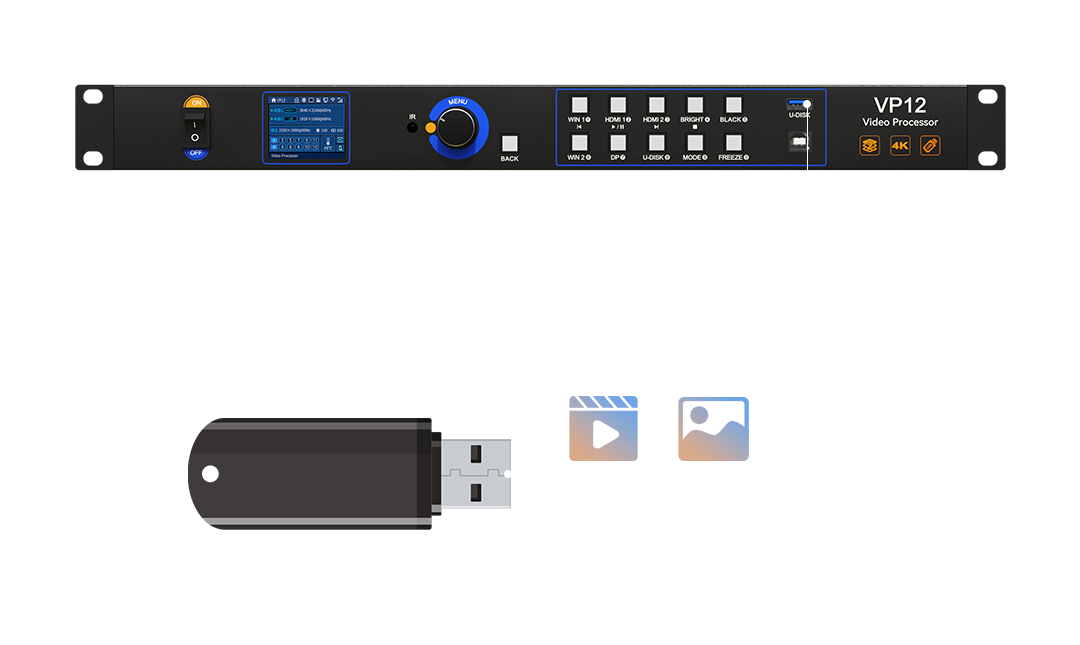

1×3G SDI (optional） 1×USB
1×AUDIO
|
1×DP 1.2
1×HDMI 2.0
1×HDMI 1.4
1×3G SDI (optional） 1×USB
1×AUDIO
|
| Output Interface |
12× Gigabit Ethernet ports
1×AUDIO
|
10× Gigabit Ethernet ports
1×AUDIO
|
| Windows quantities | 2 | 2 |

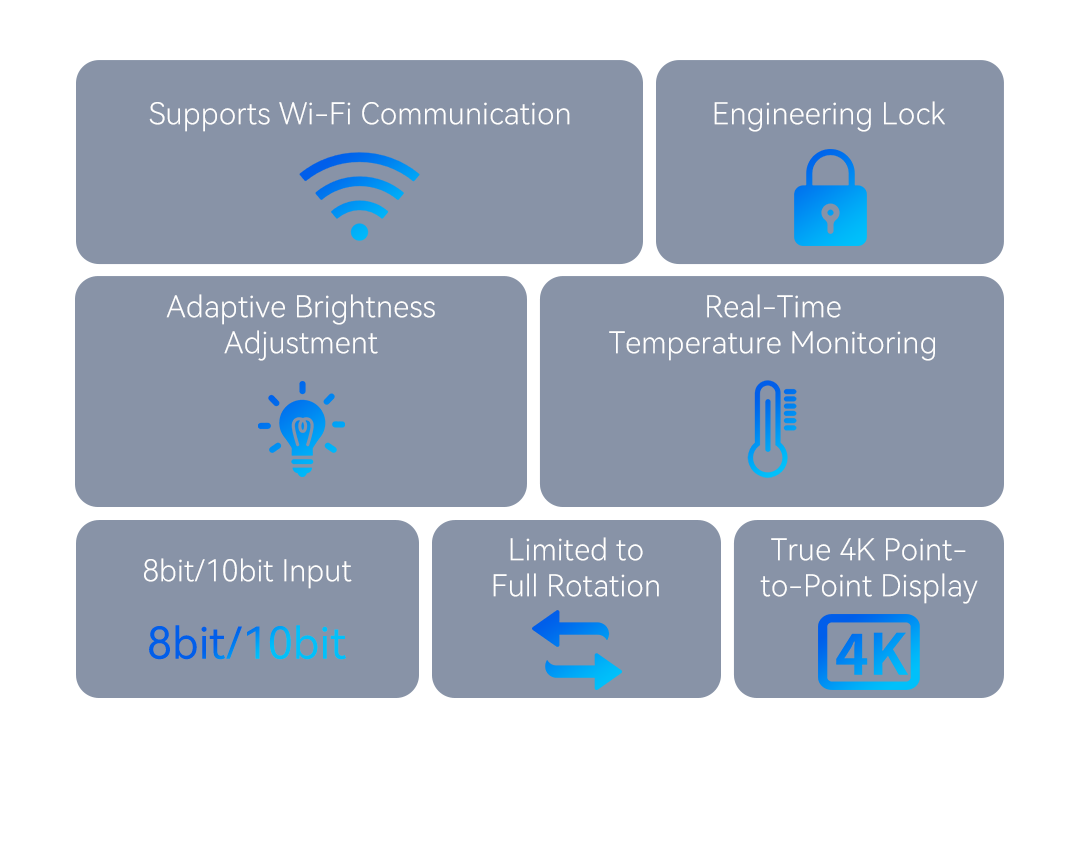

| Wi-Fi | √ | √ |
| Prefabricated scenes | 256 | 256 |
| Central control |
USB-B, Wi-Fi, LAN
RS232, RS485, IR（optional）
|
USB-B, Wi-Fi, LAN
RS232, RS485, IR（optional）
|
