Shenzhen Huidu Technology Co., Ltd.

Maximum control range

The total load is 5.24 million pixels, the widest is 65,536 or the highest is 8192 pixels.Meet most of the ultra-long screen application scenarios

Multiple cascade modes

HDMI cascade, optical port cascade, support optical fiber long-distance Transmission

Dual Wi-Fi chips

Supports high-resolution, low-latency screen projection, with a maximum rate of 800Mb/s

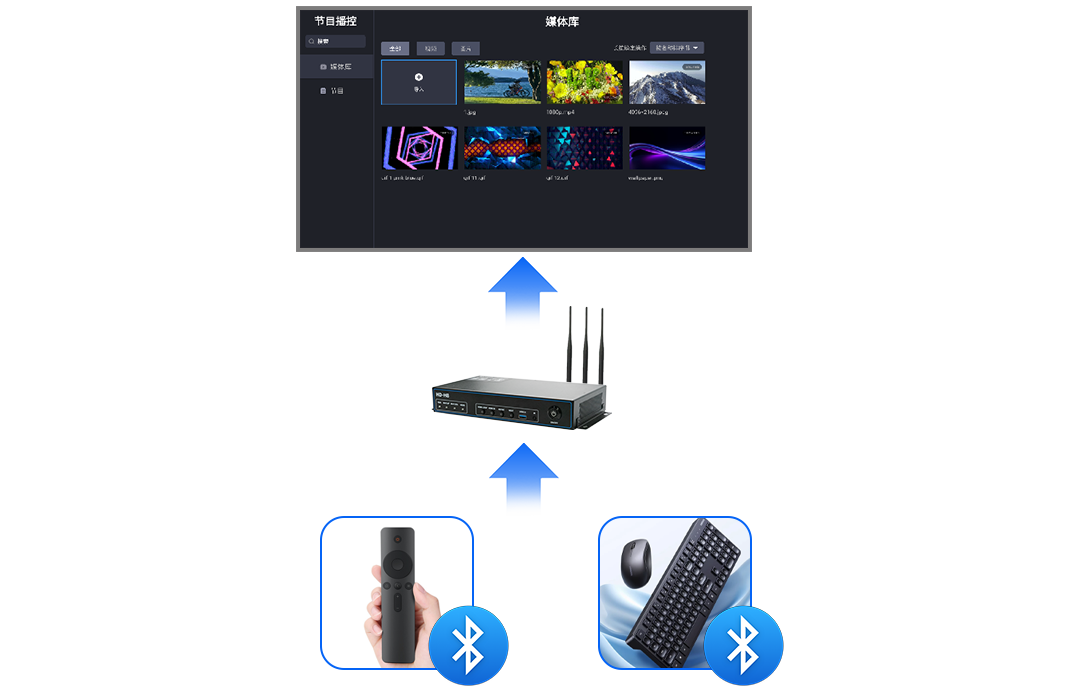

local editing

Programs can be edited and played directly on the H8 via remote control,keyboard and mouse

Model	HD-H8	HD-H6
Loading capacity	5.24 million pixels (8 Ethernet ports)	3.93 million pixels (6 Ethernet ports)
Max. width	65,536pixels	65,536pixels
EMMC storage	64G	64G
Storage Expansion	128G	128G
Video decoding	4K	4K
Operating system	Android 11	Android 11
Number of video channels	2×4K or 6×1080P or 10×720P or 20×360P	2×4K or 6×1080P or 10×720P or 20×360P
Video frame rate	60 frames	60 frames
Multi screen synchronous playback	√	√
USB playback	√	√
Audio output	√	√
External relay	√	√
Sensor access	√	√
Receive card cascade	√	√
Program switching button	√	√
Wired network	√	√
Wi Fi network	√	√
4G/5G network	√	√
HDMI IN	√	√
HDMI LOOP	√	√
HDMI OUT	√	√
Synchronize Picture in Picture	√
Multi platform terminal Wireless screen mirroring	√	√
Onboard relay	√	√
RS232	Standard	Standard
RS485	Standard	Standard
infrared remote control	Built-in	Built-in
Optical port cascade	√	√
local editing	√	√
Dual Wi Fi mode	√	√
Bluetooth	√	√
