RK3566：HD-3566MV
  • Features
  • Specification
  • Download
RK3566 Quad Core Processor
RK3566 quad-core 64-bit Cortex-A55 processor, up to 1.8GHz, using 22nm advanced process, featuring low power consumption and high performance
True 4K point-to-point, see the beauty of details
Support V-by-One communication interface, the picture transmission efficiency is higher, 4K realistic picture, so that the details are nowhere to hide.
1 TOPS NPU
Built-in independent NPU, can provide 1 TOPS NPU support, enabling rich AI applications for products
Multiple communication methods
Support 100Gb Ethernet, 4G network (optional) Wi-Fi 6 (2.4GHz+5GHz dual-band Wi-Fi), Bluetooth 5.0
Android 11
Equipped with Android 11 system, running faster with better security and compatibility

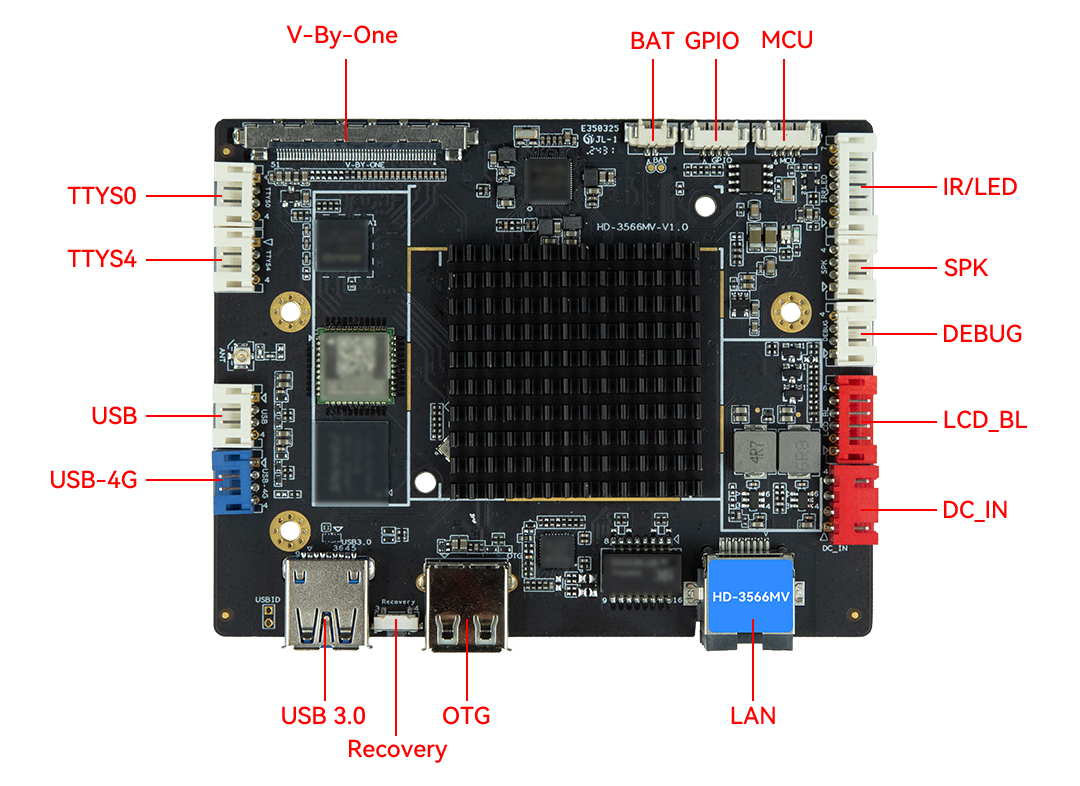

Rich Expansion Interface
Model HD-3566MV
CPU RK3566 quad-core 1.8GHz
GPU Mali-G52
NPU 1 TOPS NPU
System version Android 11
Decoding capability 4K@60Hz
Display
interface
V-By-One：3840*2160@60Hz
Wi-Fi Wi-Fi 6（2.4GHz+5GHz）
Bluetooth BT5.0
Ethernet 100Mbps
Optional 4G √
USB √
USB playback √
Extension
interface
1×USB 3.0 HOST，1×USB 2.0 OTG，2×USB expansion interface
2×TTL，1×DEBUG，1×MCU、3×IO
Messaging
software
 Mobile APP⸺“LedArt”APP; Cloud Platform⸺XiaoHui Cloud; PC Software⸺LCD Player

Document
software
Firmware
