RK3566：HD-3566P
  • Features
  • Specification
  • Download
Quad-core chip
Powered by Rockchip RK3566 quad-core 64-bit Cortex-A55 high-performance processor with 8nm advanced process technology, featuring up to 1.8GHz clock speed and 1TOPS computing power, delivering robust performance with ultra-low power consumption
Supports multiple display interfaces
Integrated mainstream display interfaces (LVDS/eDP/HDMI/MIPI-DSI) with support for up to 4K@60Hz high-definition video output
Android 14.0 system
Equipped with Android 14 system, it supports third-party APK installation, providing stronger system stability and compatibility

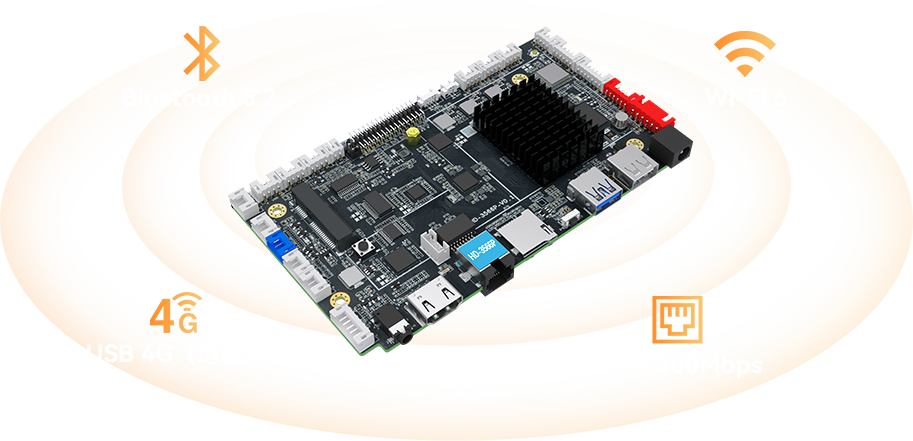

Multiple network communication methods
Supports 100Mbps Ethernet, Wi-Fi 6 (2.4GHz, with optional 5GHz), Bluetooth 5.2, built-in PCI-e interface, and optional USB 4G module
Rich/Comprehensive expansion interfaces
The 3566P integrates abundant expansion interfaces for effortless scalability across diverse application scenarios
Application scenarios
The 3566P Mainboard is compatible with mainstream LCD digital photo frame products

Model
 HD-3566P
CPU
Quad-core 1.8GHz
NPU 1TOPS
System version
Android 14.0
Image display
4K@60Hz
Display interface
LVDS、HDMI、eDP
Wi-Fi
2.4GHz
（Optional 2.4G+5GHz）
Bluetooth
BT5.2
LAN
100Mbps
Optional 4G/5G
4G (Circumscribed)
TF interface
 √
HDMI input
Optional 1×HDMI IN
Extension interface
5×4pin*2.0mm USB,
2×USB 3.0,
4×UART,
MCU,5×GPIO, PoE, DEBUG
Messaging software
Mobile APP⸺“LedArt”APP; Cloud Platform⸺XiaoHui Cloud; PC Software⸺LCD Player



Document
software
Firmware
