HD-VP2060
20 Gigabit Ethernet port outputs
Loading Capacity 13 Million Pixels,Widest 16384 pixels
Abundant inputs, audio/video interfaces
Comprehensive coverage of a large number of interfaces, efficient and stable picture transmission
6-screen display Layout as you wish
Support six-screen free layout, 3×4K or 2×4K+4×2K or 6×2K

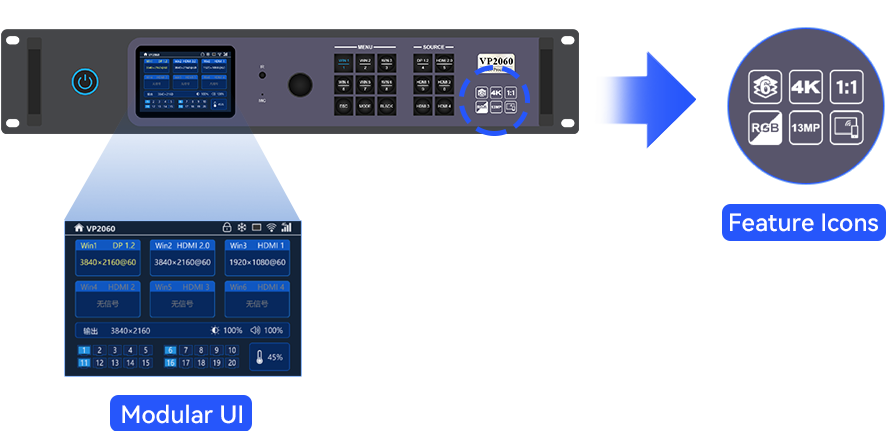

Newly upgraded modular UI, feature icons
Modular UI design, real-time device status at a glance
Separate audio interface
VP2060 comes with high-fidelity audio input and output; HDMI/ DP embedded audio can be separated for more convenient use.
More functions

Model
HD-VP2060 HD-VP1240A HD-VP1640A
Loading capacity
13 million pixels
7.8 million pixels
10.4 million pixels
Max. width
16,384 pixels
16,000 pixels
16,000 pixels
Video signal input
1xHDMI2.0
1xDP1.2
4xHDMI1.3
Type-C/DP 1.2、
HDMI 2.0、
2xHDMI 1.4 、2×DVI
Type-C/DP 1.2, HDMI 2.0,
2×HDMI 1.4 (Optional screen
casting+USB),
2×DVI (Optional SDI+Loop)
Prefabricated scenes
16
8
8
Wi-Fi
USB
- -
Optional
TRS audio output
TRS audio output
6 4 4
Control method
USB-B, Wi-Fi, RS232,
IR optional
USB-B, Wi-Fi, RS232,
IR optional
USB-B, Wi-Fi, RS232,
IR optional
